ROOFTOP TRACKING ARRAY

910WRV Rooftop Solar Tracker

Name: 910 W Rooftop Tracking Array
Brand: SUN-ZENITH

A closer look. A wider possibility.

Two 455 W solar modules. An integrated metal frame. Explore the 910 W array from both sides, then take a closer look at the mechanisms behind it.

Discuss your installation Explore the structure ↓

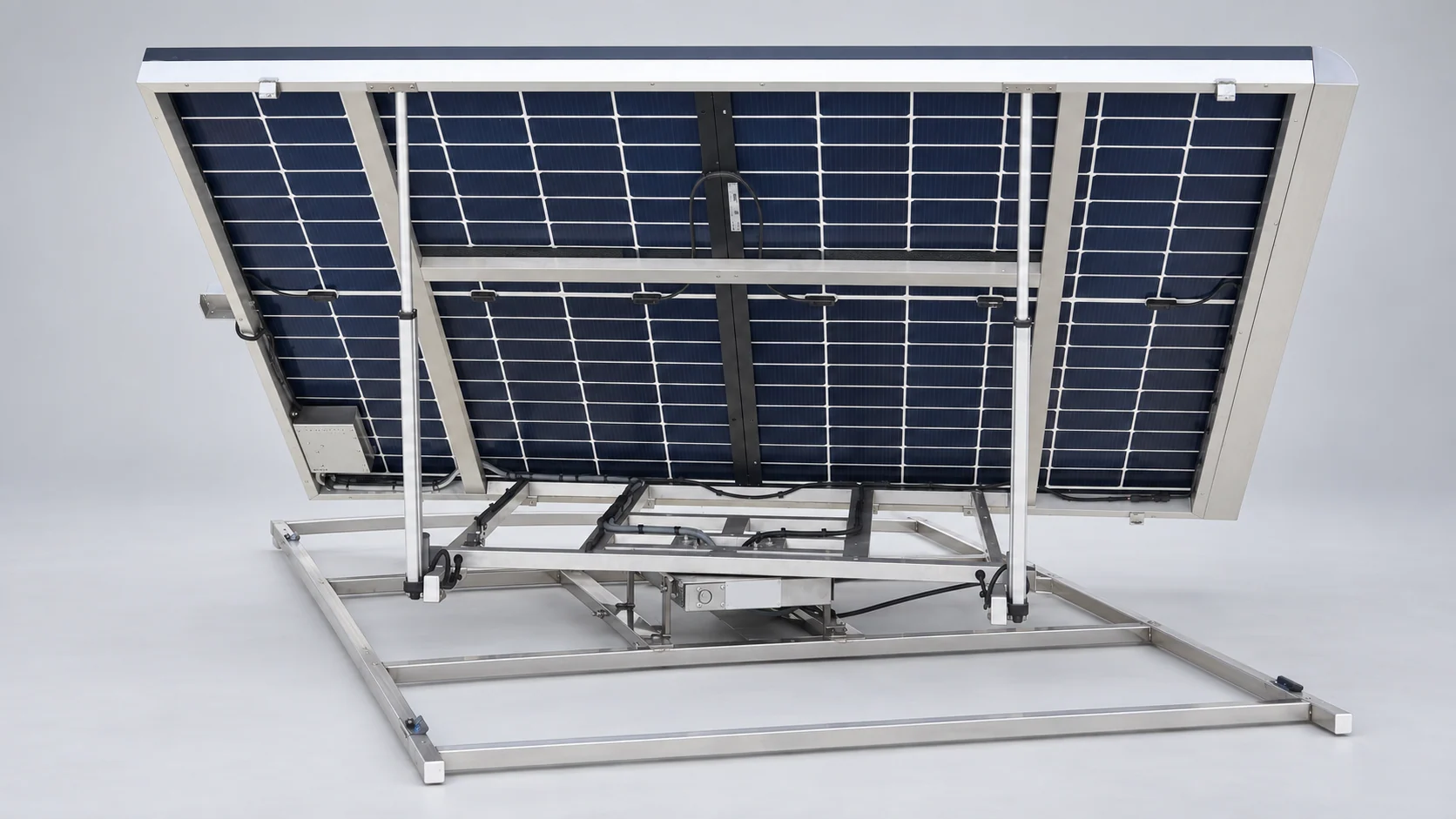

910 W assembly rear view with support actuators, base frame and short panel interconnects — Rear view

Front view

01 / STRUCTURE

The structure behind the surface.

Look behind the modules to see how the frame, actuator mounts and local wiring come together. These photographs show the actual assembly and its connection points.

Paired actuators

A linear actuator is mounted on each side of the frame.

Metal support frame

Cross members and mounting points are visible beneath the array.

Local connections

Short panel leads and wiring follow the rear assembly.

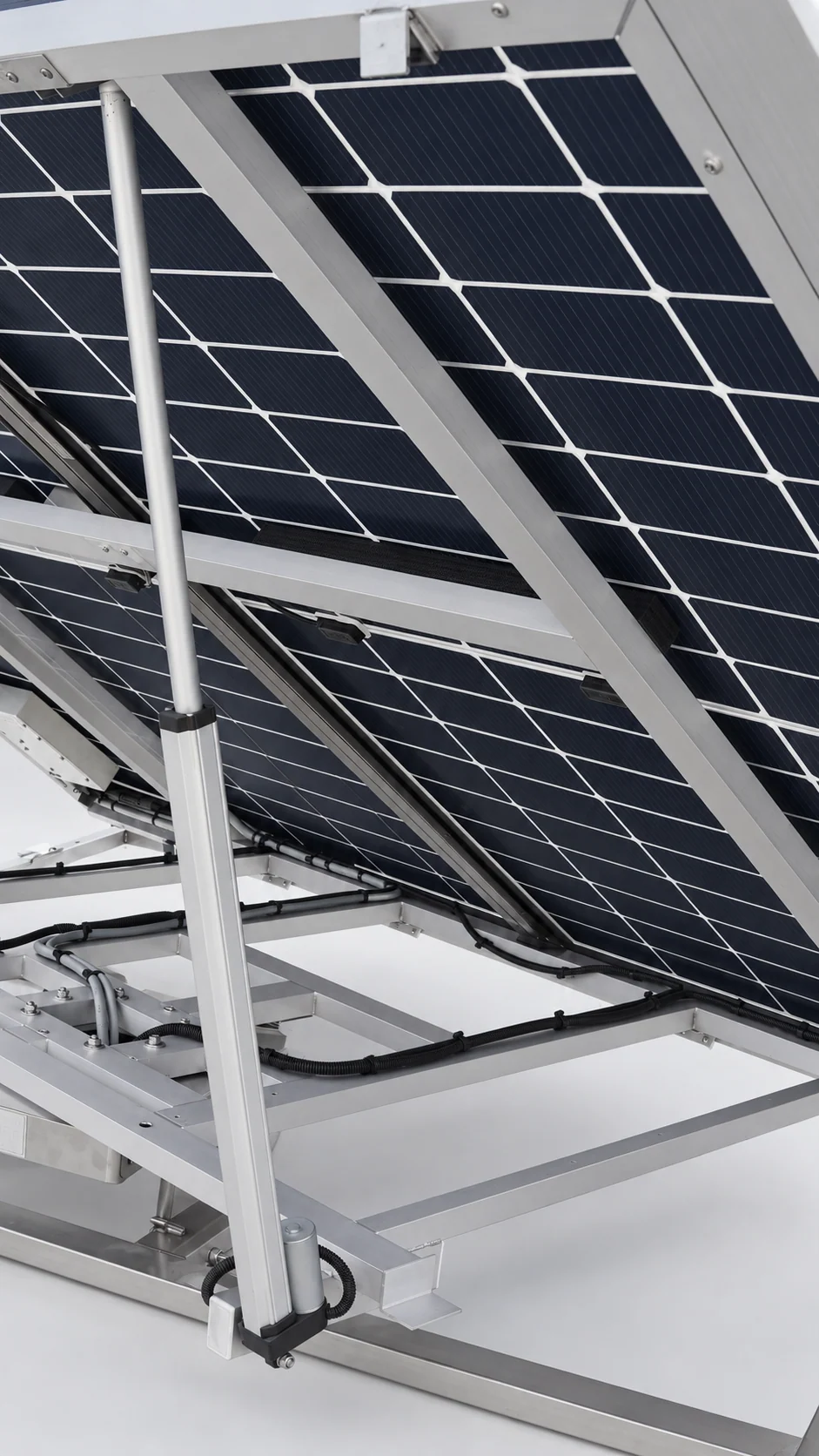

Vertical detail of the 910 W rear structure, actuator, brackets and internal harnesses — Rear support structure

Rear support structure

02 / PRODUCT DETAILS

Get to know the assembly.

A closer look at the actuators, frame and connections.

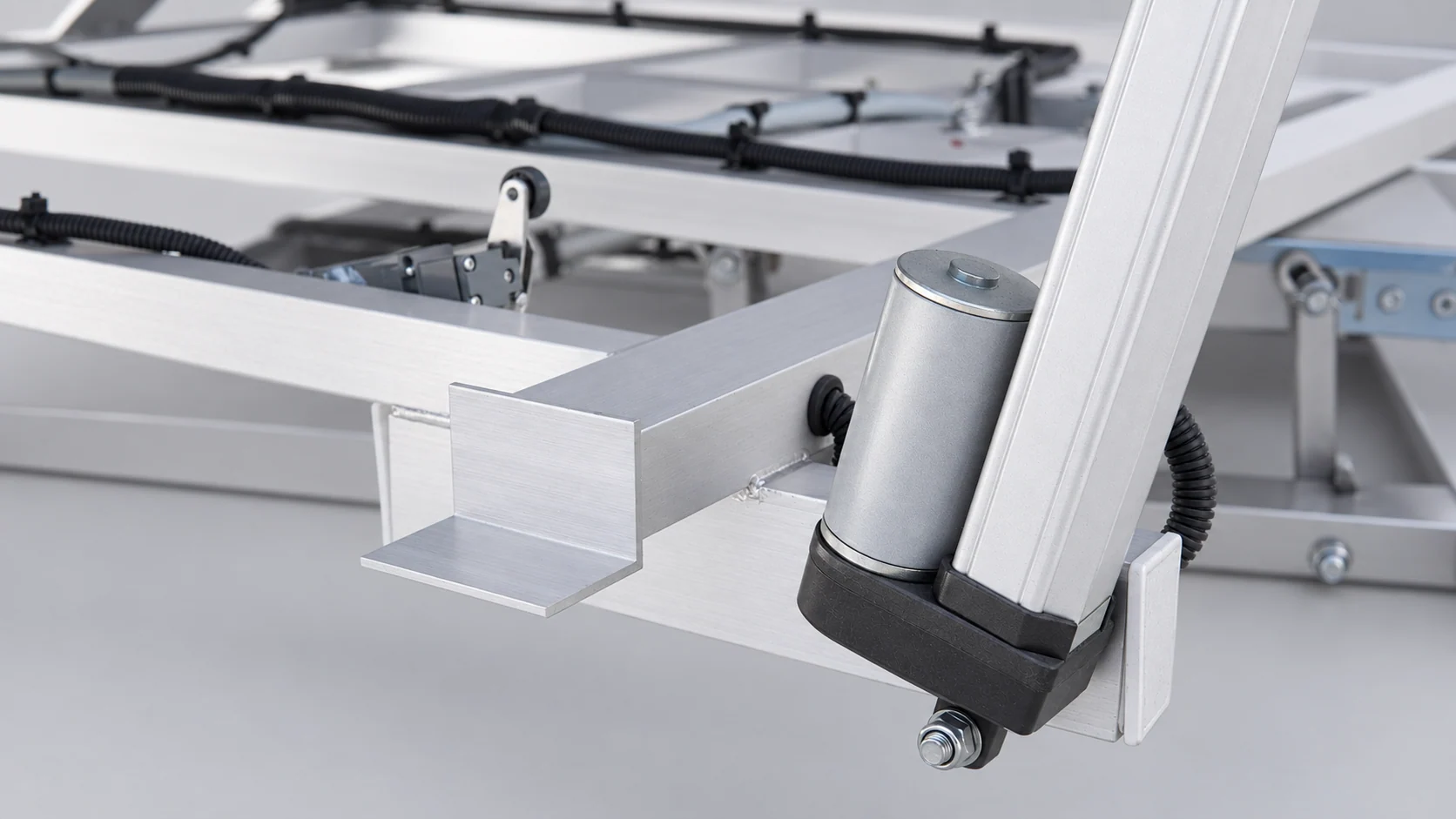

Actuator base motor, pivot bolt and silver mounting bracket — Actuator motor

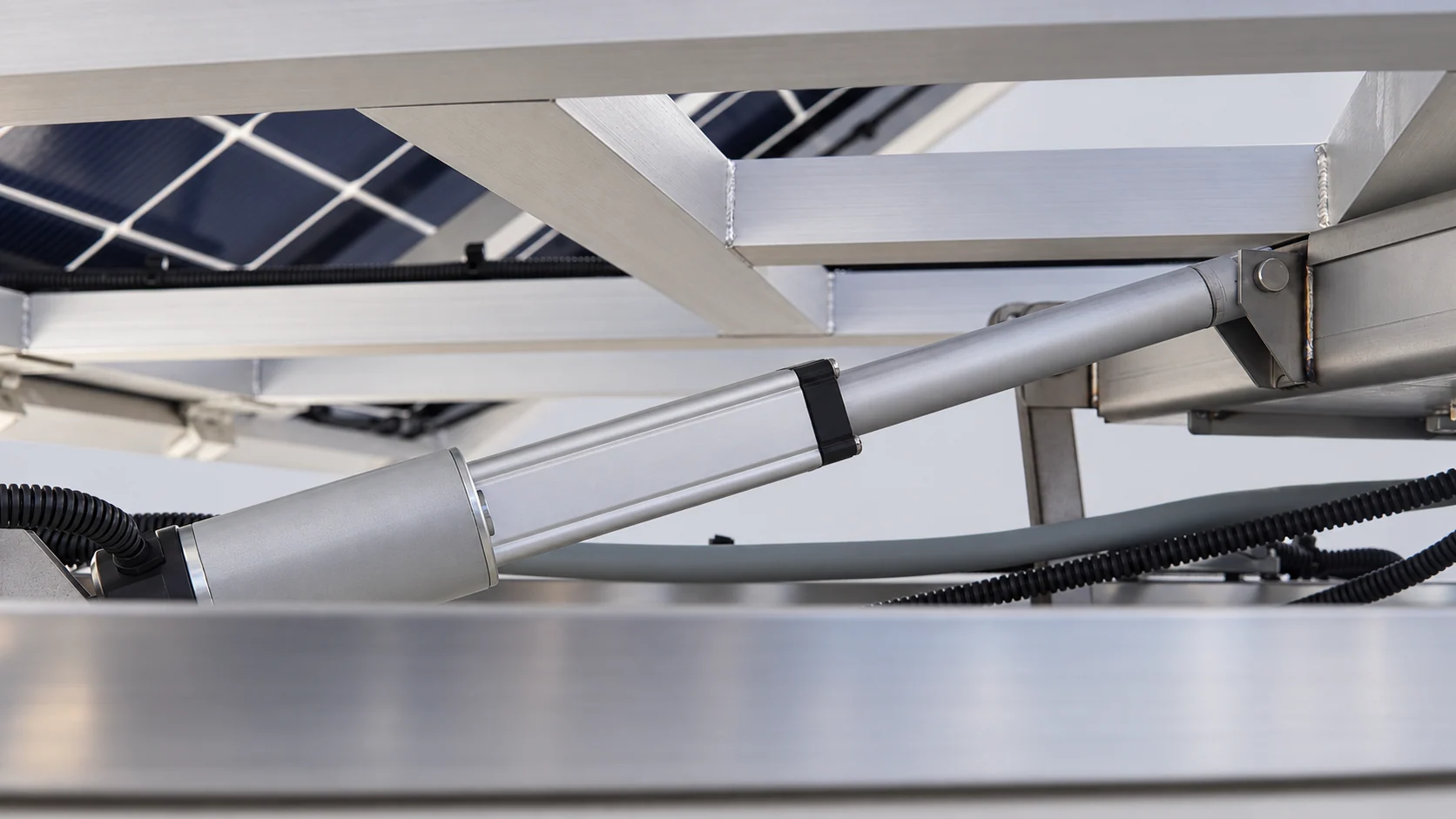

Drive actuator and linkage mounting beneath the panel — Lower drive assembly

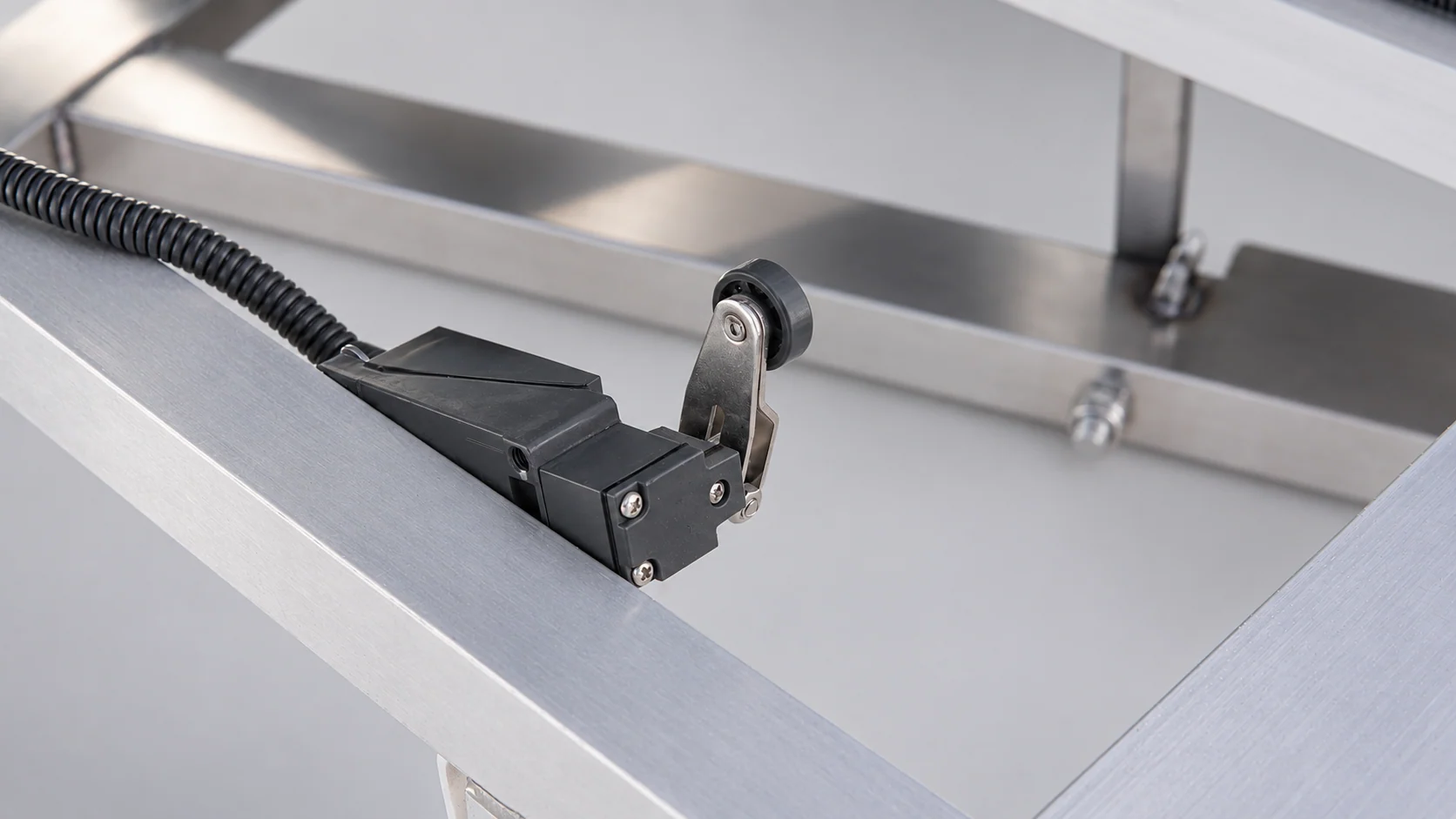

Roller limit switch mounted on the silver base frame — Limit switch

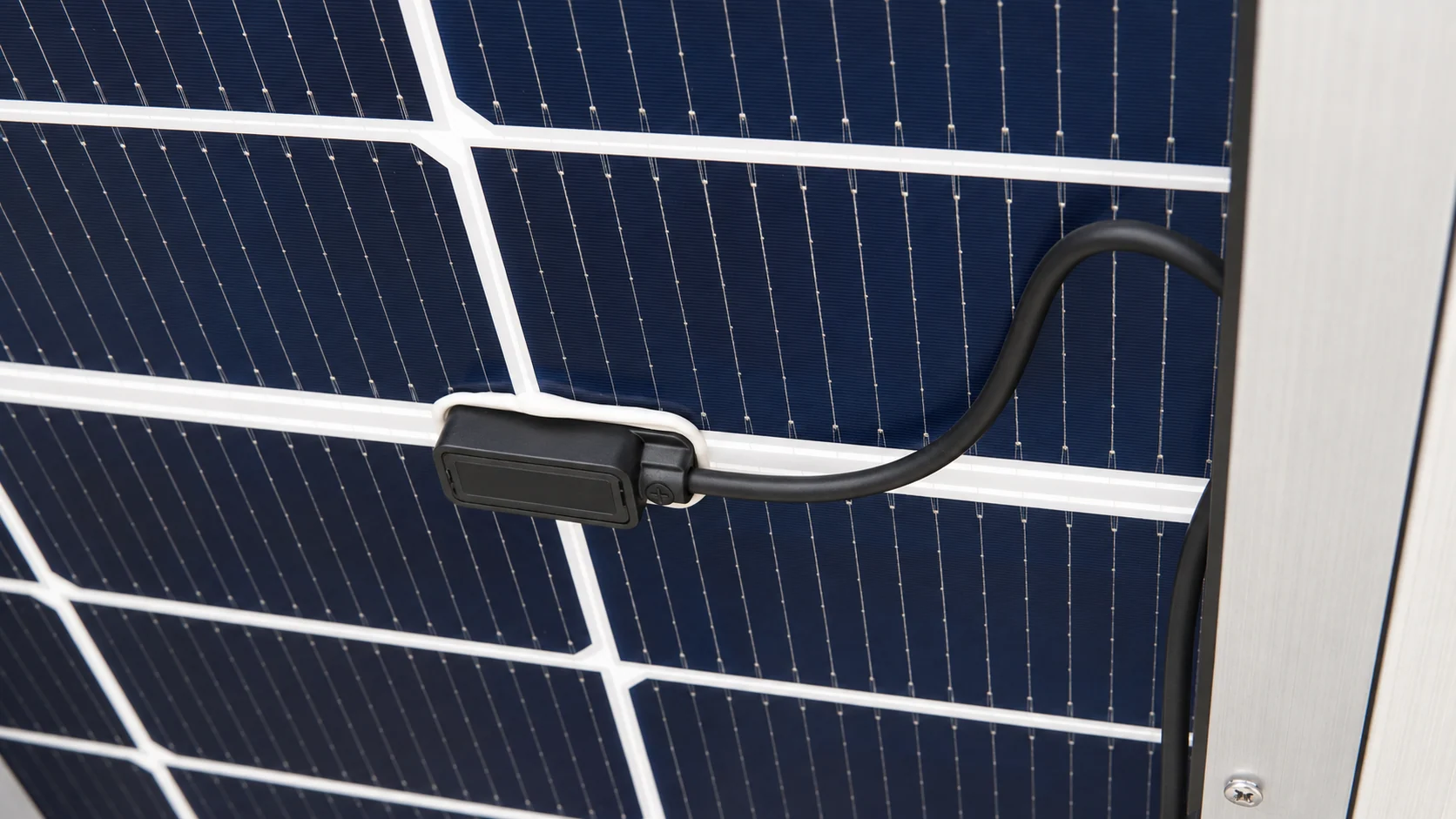

Rear panel junction box with its retained short connecting cable — Module junction box

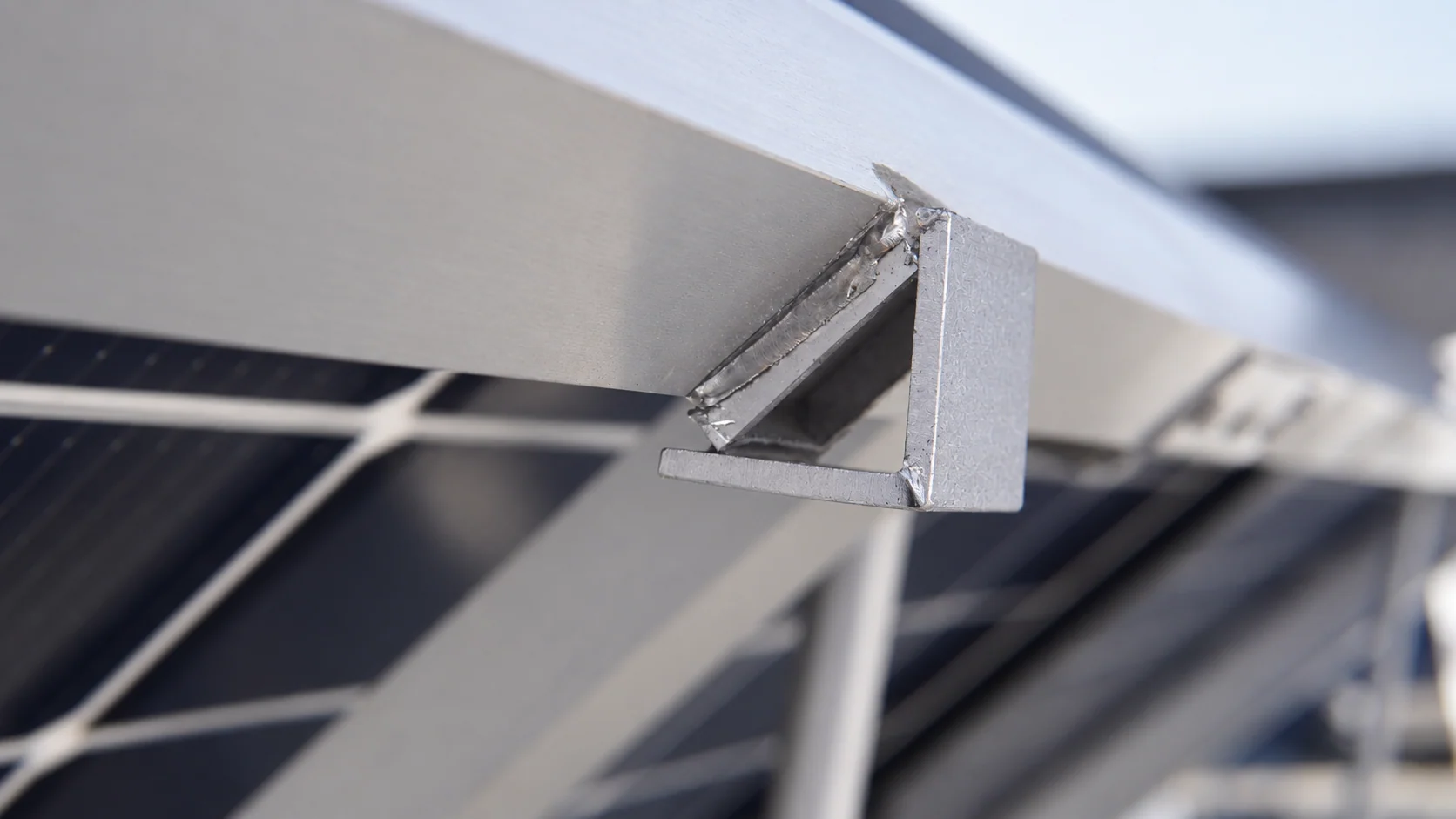

Welded bracket detail on the silver module frame — Welded bracket

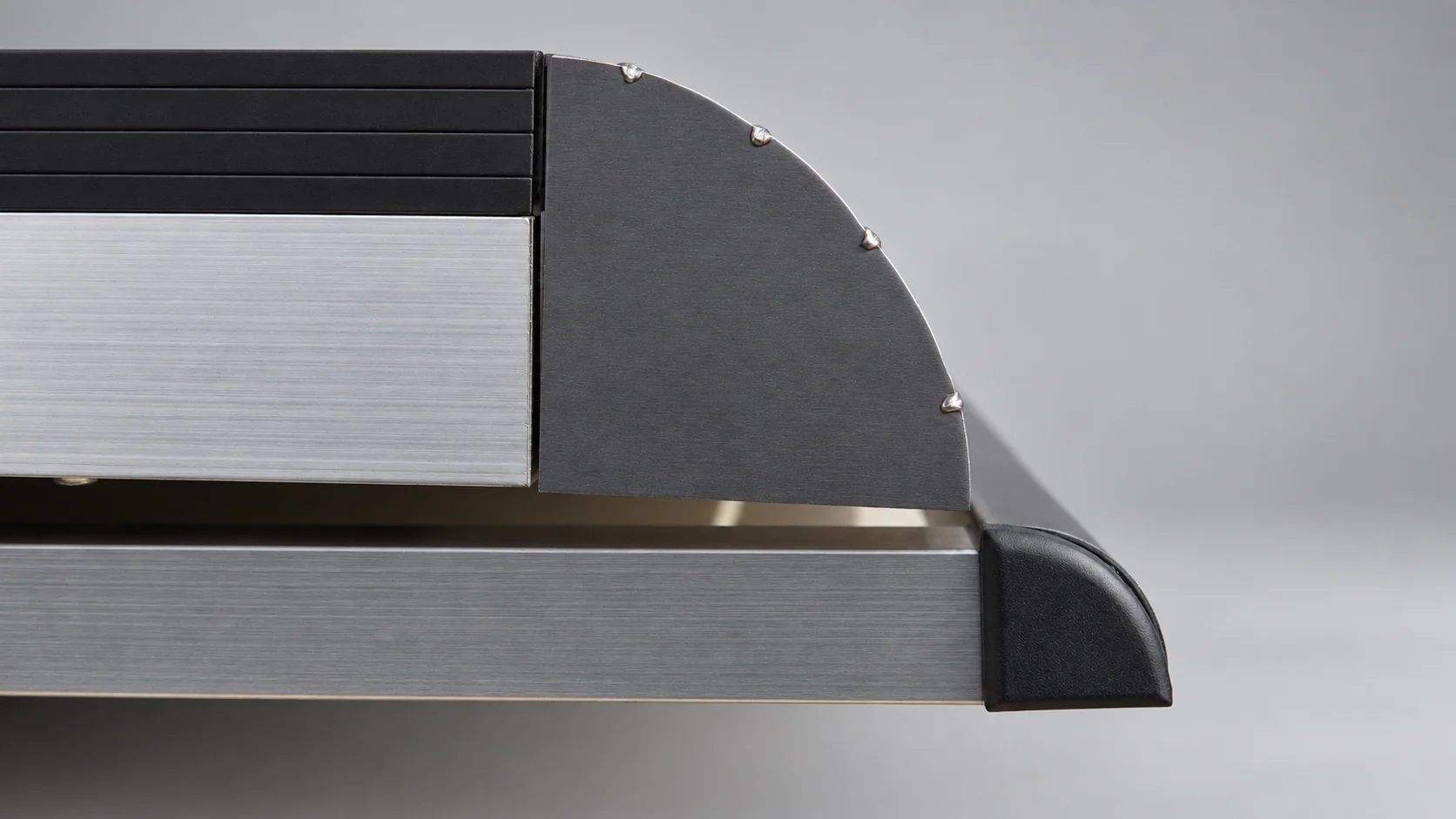

910 W rounded side edge, panel frame and lower end cap — Rounded frame edge

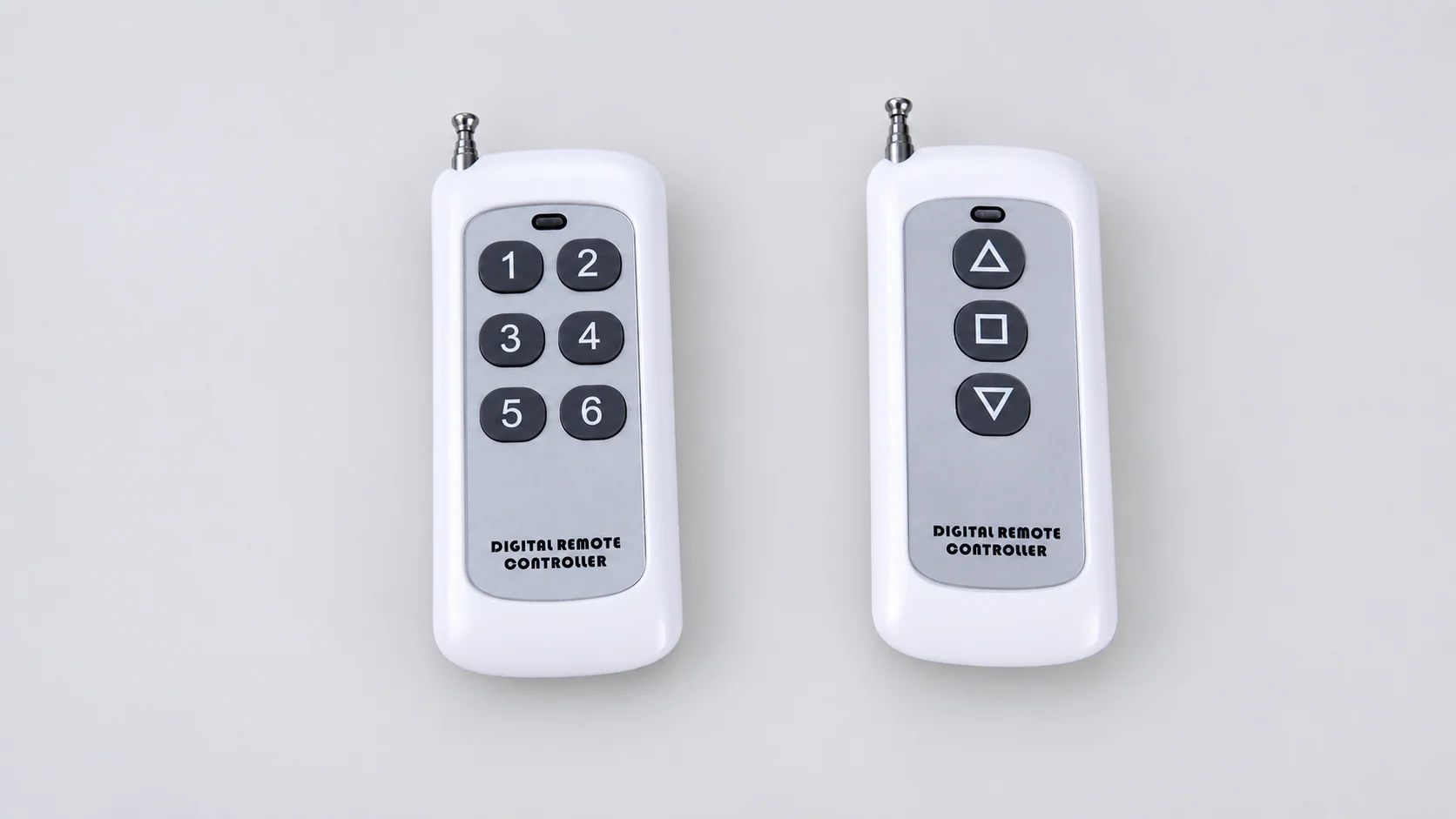

White six-button and three-button remote controls with their original button markings — Remote controls

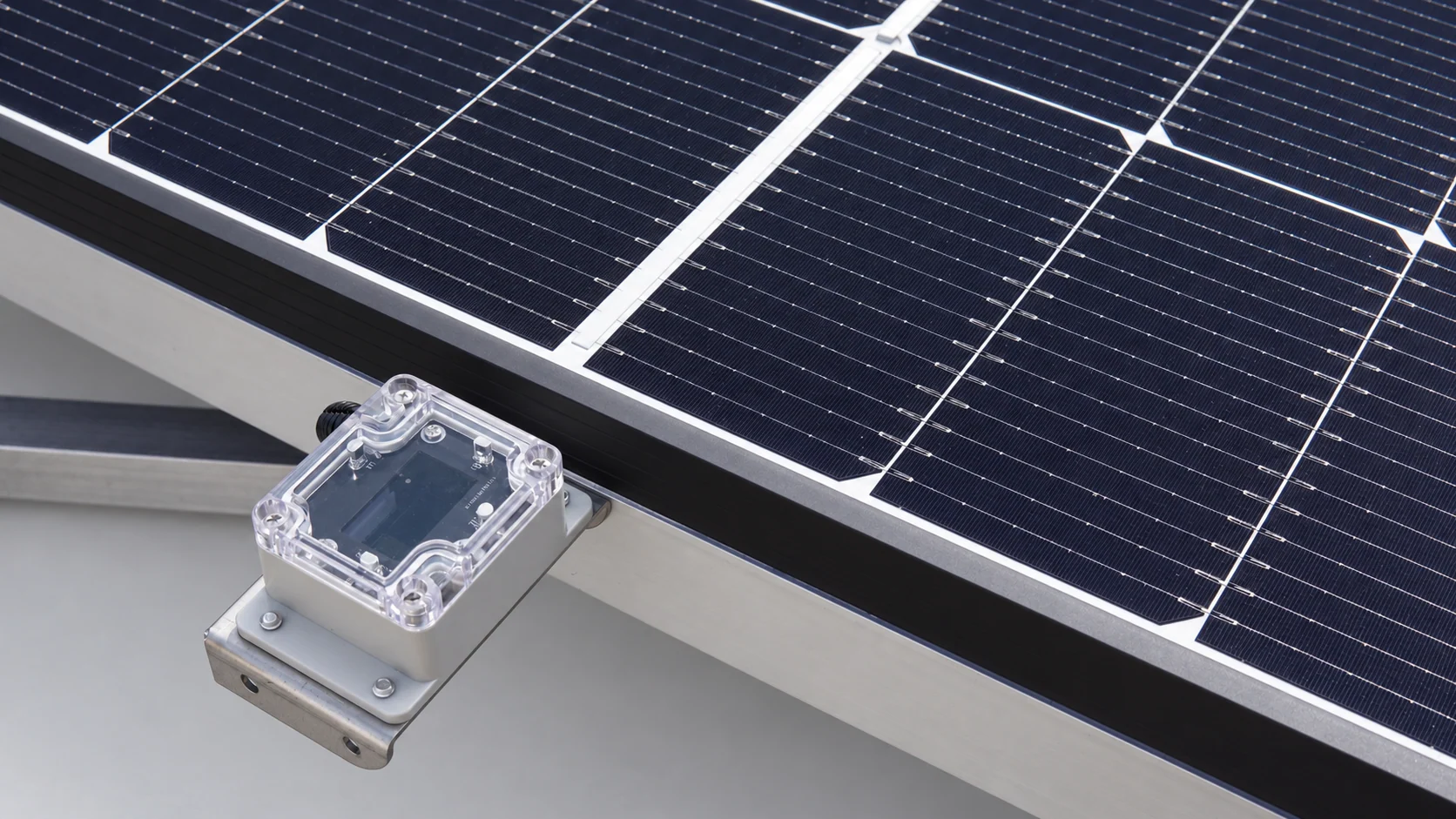

Clear-cover sensor module mounted at the photovoltaic panel edge — Clear-covered module

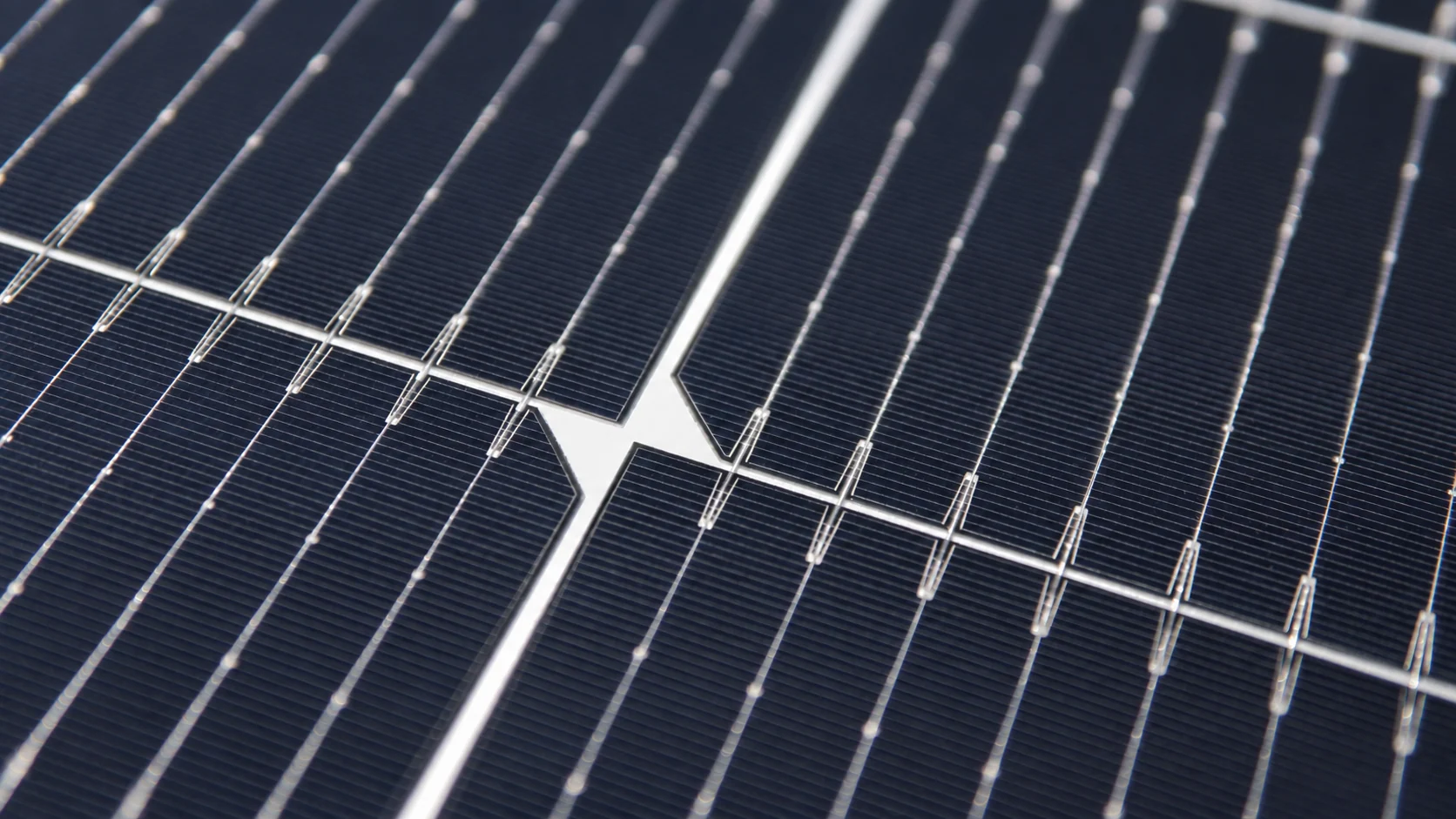

Macro view of the 910 W panel cell surfaces and fine grid lines — Solar cell detail

Actuator motor

03 / YOUR VEHICLE

Start with your roof.

Tell us your vehicle type, available roof space and existing equipment. We will discuss the mounting layout and installation requirements with you.

Discuss your installation

Class A motorhome

Class C motorhome

Truck camper

Travel trailer

Vehicle categories are a starting point for consultation. Fit depends on the individual roof and installation plan.

04 / PRODUCT INFORMATION

The essentials.

Photographs show the product assembly. Supplied accessories and installation details will be confirmed in your proposal.

Product: 910 W Rooftop Tracking Array
Power class: 910 W
Module layout: 2 × 455 W solar modules, side by side
Assembly shown: Metal frame, actuators, local wiring and controls
Solar array dimensions: 1762 × 2380 × 30 mm 69.37 × 93.70 × 1.18 in
Including wind deflector: 112 mm 4.41 in
Overall system dimensions: 1762 × 2380 × 123 mm 69.37 × 93.70 × 4.84 in
Total system weight: Approx. 110 kg (242.5 lb)
Electrical specifications: To be confirmed with the final configuration
Product price: TBD
Delivery: Confirmed on inquiry
