720WRV Rooftop Solar Tracker

Name: 720 W Rooftop Tracking Array
Brand: SUN-ZENITH
Price: 6999.99 USD

One continuous array.
Two axes of tracking.

Made for the roof. Open to the sun.

[data-v720-gallery="overview"] > :not(noscript) { display: none !important; }

720 W rooftop solar tracker, front three-quarter view — Three-quarter
See the solar surface and the tracking supports beneath it.

720 W rooftop solar tracker, front view — Front
A clear front view of the complete module and lower frame.

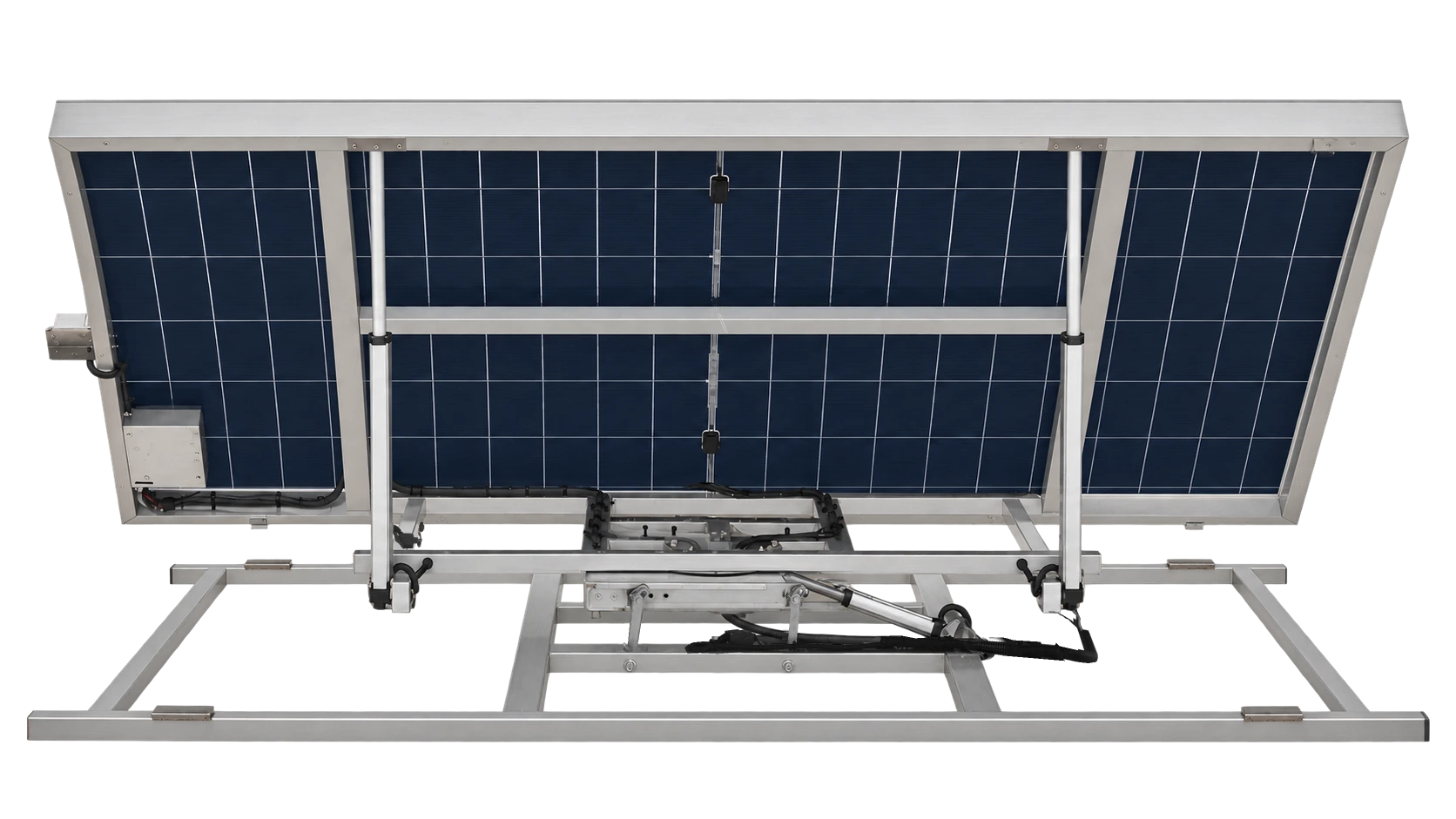

720 W rear view showing the stainless steel frame, paired elevation actuators, central turntable and wiring — Rear
See the paired elevation actuators, turntable and wiring from the rear.

720 W / THE INTERACTIVE EXPERIENCE

Up at sunrise.
Following the sun all day.

Drag through a day in 3D: it unfolds at sunrise, follows the sun and folds away at dusk. Check its stowed size, or watch how it moves, step by step.

Start the experience

See the stowed size ↗Explore the mechanism ↗

A white van on the California coast at dawn, its rooftop tracking array stowed, the Golden Gate Bridge behind it — Interactive scene and mechanism demonstration

01 / THE SOLAR SURFACE

One array.
Every cell connected.

A single photovoltaic module brings 132 half-cells into one continuous surface. Dark glass and a silver frame give solar power a clean silhouette.

720W

Product power class

132

Half-cells

6×22

Cell layout

Drag to explore

Preparing photo…

01 / 03

One complete module, with its full lower support.

[data-v720-gallery="module"] > :not(noscript) { display: none !important; }

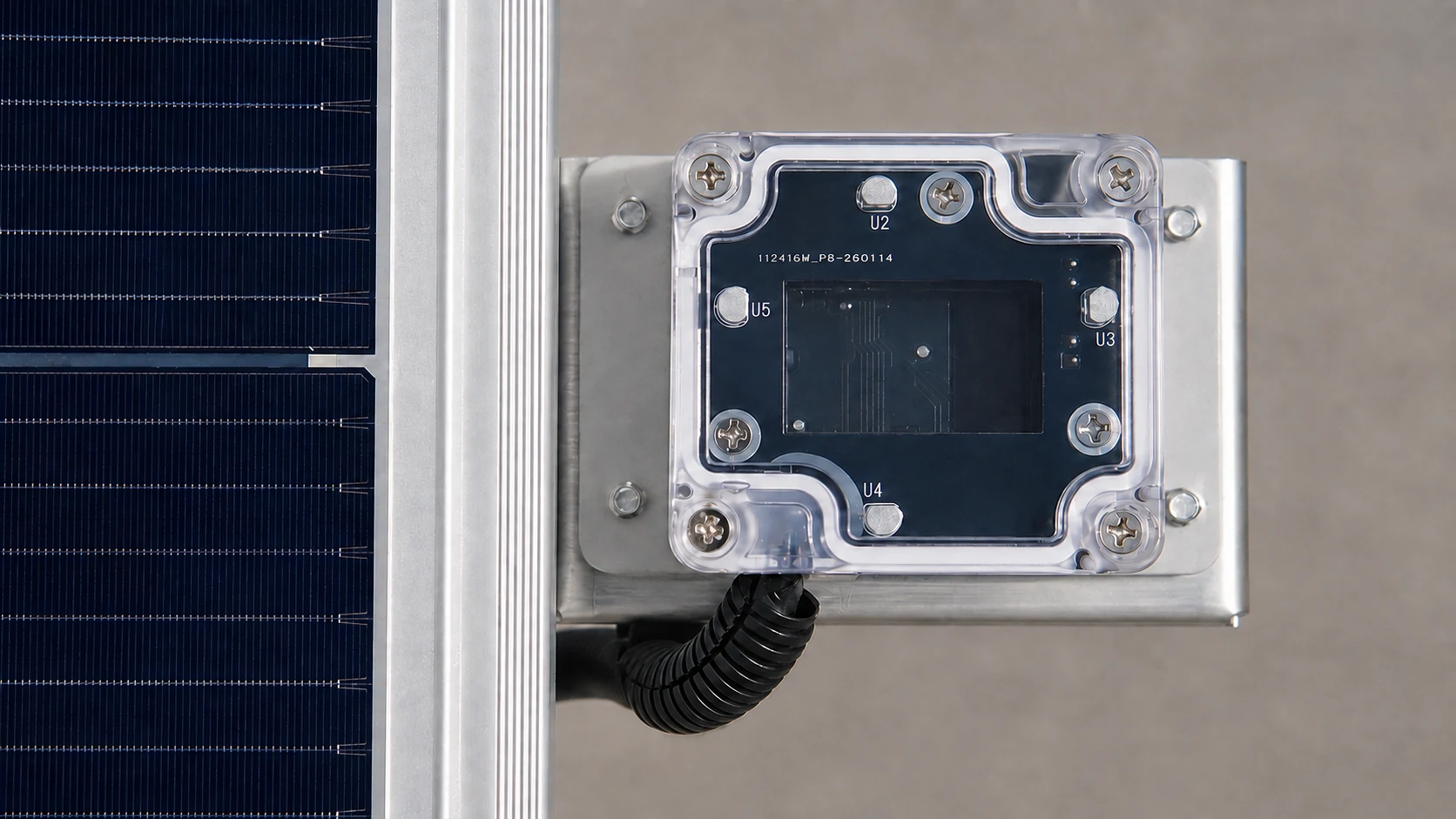

Module edge-mounted tracking sensor detail — Tracking sensor
A dedicated sensor at the module edge provides direction information for tracking control.

See all technical specifications

02 / TRACKING STRUCTURE

Every movement.
Supported by its structure.

Lift, azimuth rotation and elevation each play a part in following the sun.

Base lift

The lower actuator and four short links raise the central turntable base.

Rotating base

The central turntable adjusts azimuth, changing the direction of the entire module.

Panel tilt

Paired linear actuators and pivot supports change the module’s elevation.

03 / WITHIN THE LINES

Room to unfold.
Designed to stow.

A 2496 × 1303 mm / 98.27 × 51.30 in footprint. 123 mm / 4.84 in high when stowed.

04 / EXPLORE IT YOURSELF

The whole structure. At your fingertips.

Rotate to explore the structure. Scrub the timeline to watch the assembly unfold.

Front view of the 720W rooftop solar tracker with photovoltaic surface and silver frame

3D structure preview

About this demonstration

The assembly slides to unlock, then lifts, tilts and turns; stowing reverses the sequence. Tracking follows the modelled sun over Los Angeles on 15 June, with tilt demonstrated up to 38°. Travel and speed are illustrative; manual adjustment pauses playback.

Panel tilt38°Azimuth rotation0°Base lift100%

Product image preview

05 / WORTH A CLOSER LOOK

In the details. Beyond the surface.

Drag to explore

Preparing photo…

01 / 05

A connection that changes the angle.

A closer view of the actuator-foot pivot and mounting bracket shows how the actuator connects to its support frame.

[data-v720-gallery="details"] > :not(noscript) { display: none !important; }

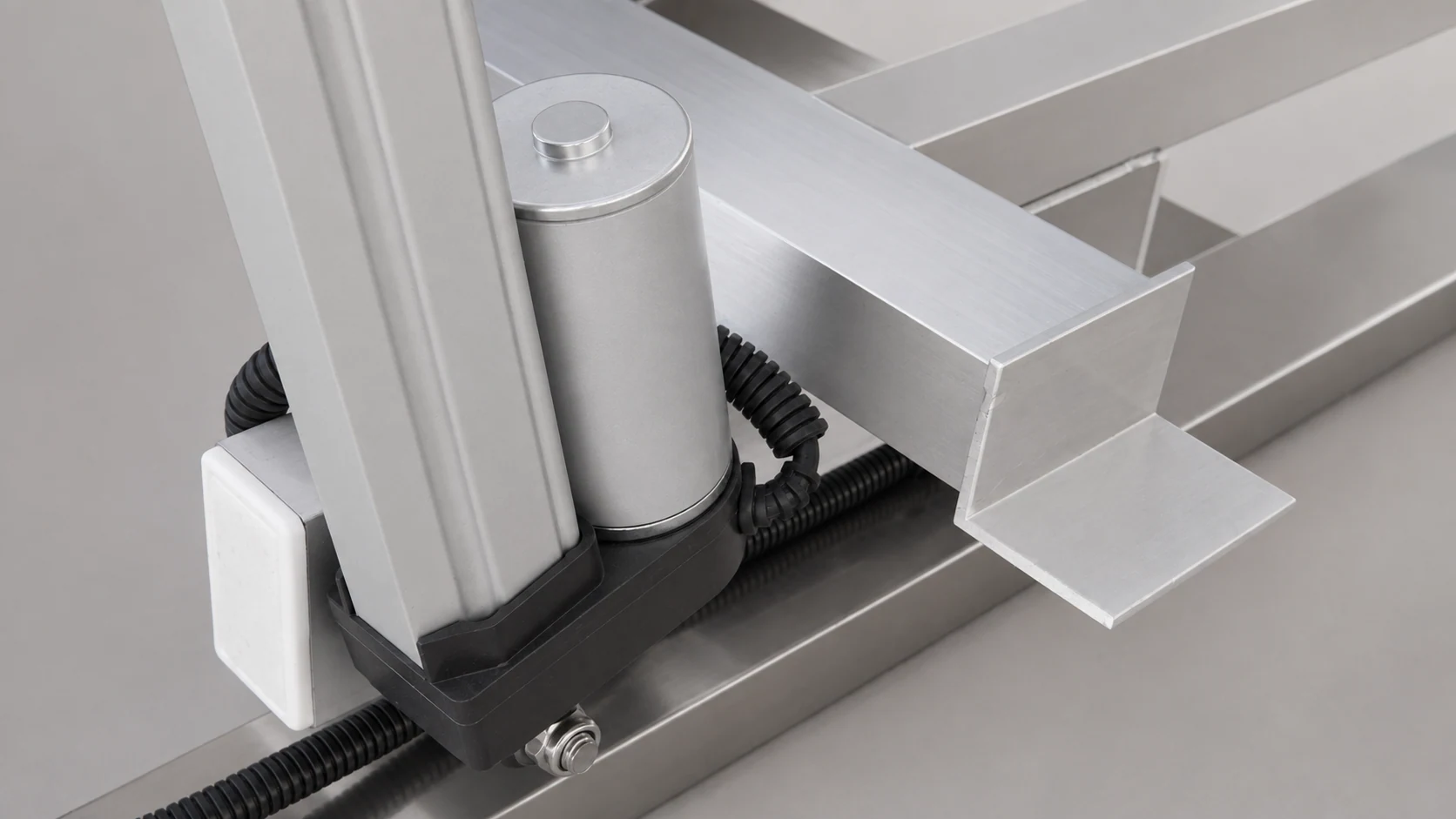

Elevation actuator foot joint and mounting bracket detail — Elevation
A connection that changes the angle.
A closer view of the actuator-foot pivot and mounting bracket shows how the actuator connects to its support frame.

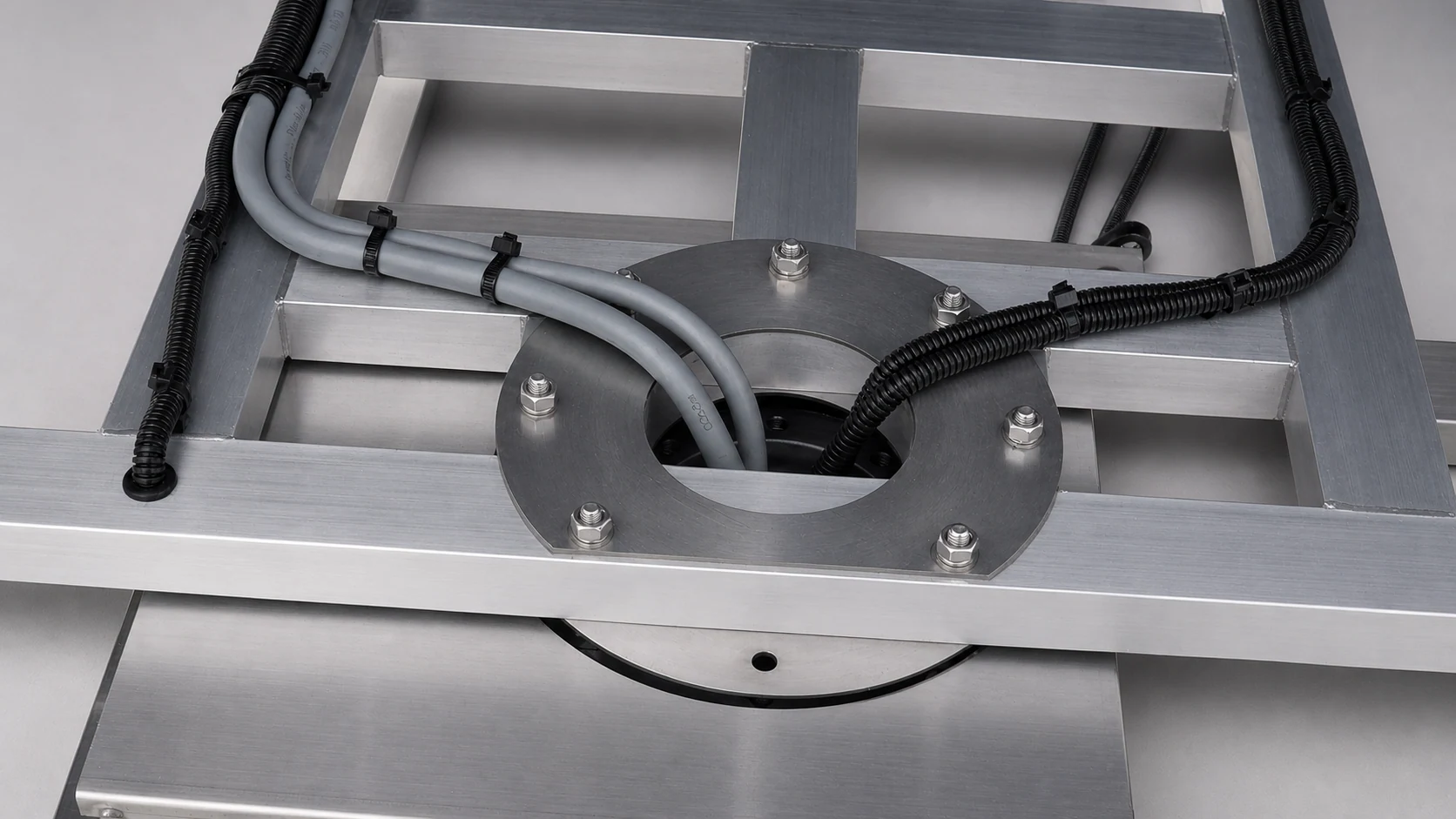

Central turntable, support structure and internal cable routing detail — Azimuth
Direction starts at the center.
The central turntable adjusts direction. Wiring follows the frame and passes through its center opening.

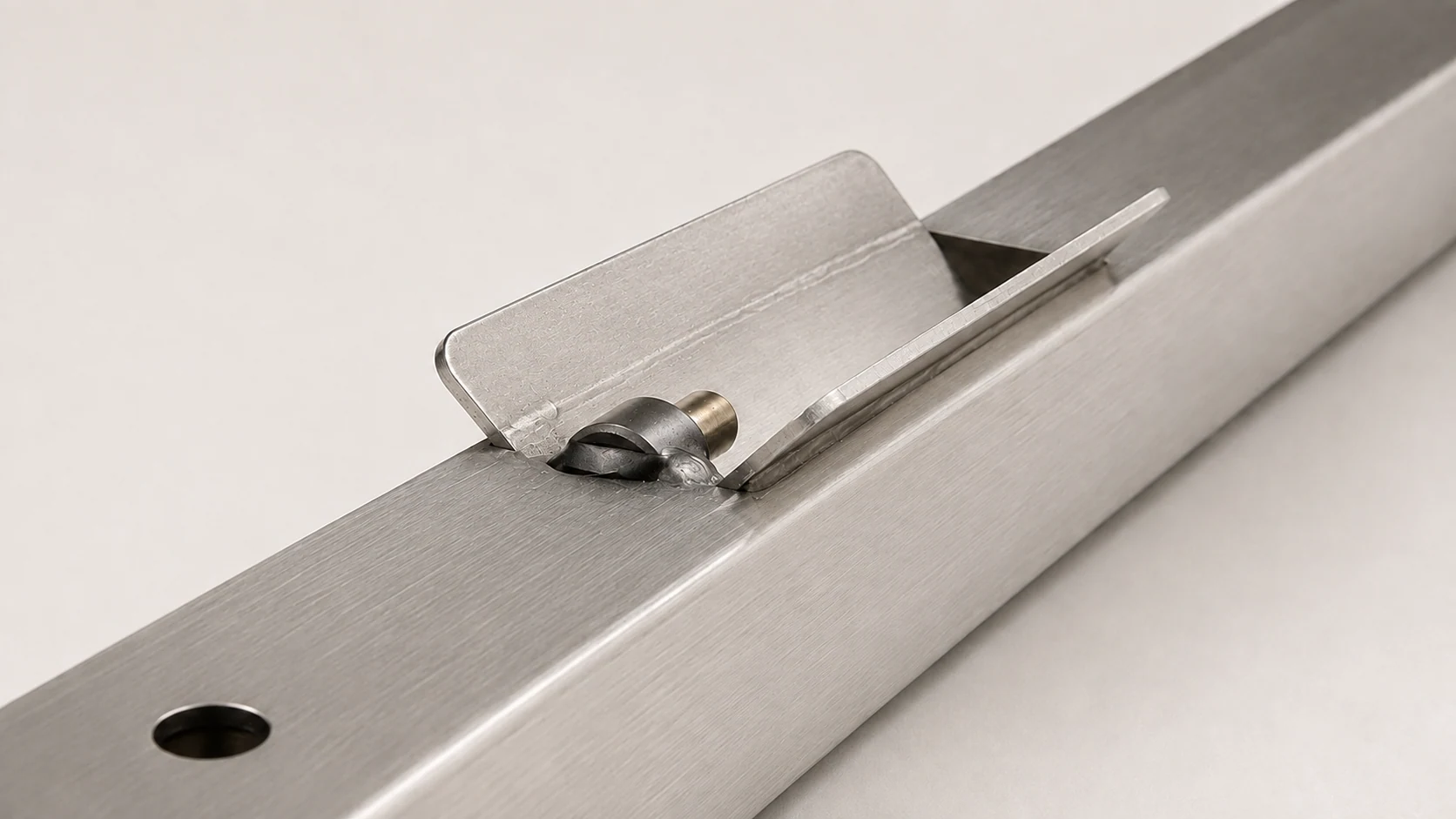

Stow lock detail with metal tab, transverse pin and guide plates — Stow lock
Stow it. Hold it in place.
A metal locking element connects the fixed frame and moving assembly to retain the stowed position.

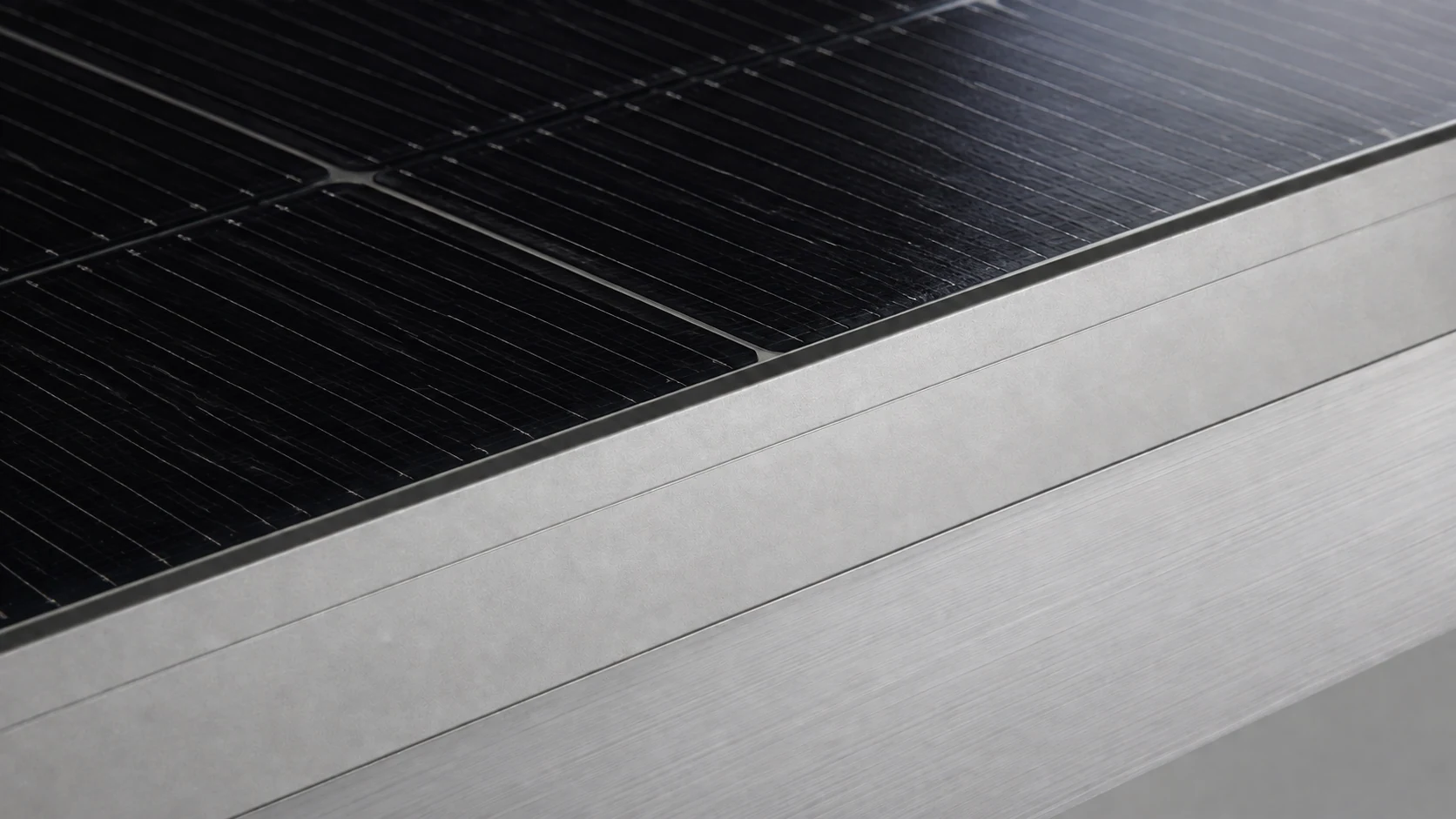

Photovoltaic glass and silver module edge detail — Glass & frame
Every edge, considered.
Dark photovoltaic glass meets a silver metal frame, giving the module a clear surface and outline.

START WITH YOUR ROOF

Your next chapter. Starts up here.

Share your vehicle and roof layout. Together, we’ll check the available space, roof loading and system configuration.

Product price: $6,999.99. Configuration, installation and delivery are confirmed on inquiry.

Submit interest

06 / TECHNICAL SPECIFICATIONS

The full picture. Down to the details.

Assembly dimensions, mechanical structure, photovoltaic electrical specifications and control parameters for the 720 W rooftop tracking array.

720W

Power class

2496×1303

Length × width / mm

98.27 × 51.30 in

123mm

Stowed height

4.84 in

01Assembly overview

Item	Specification
Product	720 W vehicle-roof solar tracking assembly
Stowed assembly envelope	2496 × 1303 × 123 mm 98.27 × 51.30 × 4.84 in Length × width × height, taken from the vendor's product documentation.
Visible photovoltaic module	1 module (commercial bifacial solar panel) Observed in photographs of this product.
Complete assembly weight	75 kg (PV module: 37.8 kg) The complete assembly, including module, frame, mechanisms and wiring.

02Structure and movement

Item	Specification
Support structure	Rectangular base, crossmembers and pivot brackets
Elevation mechanism	Paired linear actuators and pivot supports The elevation mechanism adjusts module tilt.
Load beam	Stainless-steel load beam
Stow locking structure	Metal locking tab, transverse pin and guide plates. The assembly must be stowed and locked while driving.
Elevation range	0–45°
Horizontal rotation range	360°
Actuator power	40 W × 2
Frame material and process	Laser-welded aluminum alloy frame
Mounting holes	4 factory mounting holes on each side

03Photovoltaic module and electrical

Item	Specification
Supported battery system voltages	12 / 24 / 36 / 48 / 60 / 72 V Common to the vendor's entire range. This is the battery system the assembly can charge, not the module's maximum system voltage.
Module brand and model	Canadian Solar / TOPBiHiKu7
Module efficiency	23.2%
Maximum power voltage Vmpp	40.4 V
Maximum power current Impp	17.84 A
Open-circuit voltage Voc	48.7 V
Short-circuit current Isc	18.87 A
Cell technology and bifaciality	N-type TOPCon / 85%
Individual module dimensions and weight	2384 × 1303 × 33 mm 93.86 × 51.30 × 1.30 in 37.8 kg Module dimensions and weight are separate from assembly dimensions and weight.
Front and rear glass construction and thickness	Front: 2.0 mm / 0.079 in anti-reflective heat-treated tempered glass; rear: 2.0 mm / 0.079 in heat-treated tempered glass
Junction box and connectors	IP68 junction box with 3 bypass diodes; MC4-EVO2 connectors
Cable cross-section and length	4.0 mm² / 0.0062 in²; standard length 350 mm / 13.78 in Optional: 790 mm / 31.10 in; 1200 mm / 47.24 in; 2000 mm / 78.74 in
Maximum system voltage and series fuse rating	1500 V (IEC/UL) / 30 A
Temperature coefficients and nominal operating temperature	Voc coefficient: −0.25%/°C; Isc coefficient: +0.05%/°C; NMOT: 41 ± 3°C

04Sensing and control

Item	Specification
Sensor structure	Module edge-mounted sensor Four sensing positions, a central shading area and wiring are visible.
Controller power supply	24 V
Tracking mode	Fully automatic 360° tracking
Parked wind protection	Wind-speed sensing and automatic flattening; automatic locking at Beaufort 6 when parked
Remote control	Rechargeable remote control

05Environment and installation

Item	Specification
Assembly operating temperature	−15°C to 55°C
Roof load requirement	Within the vehicle manufacturer's permitted dynamic roof load Each installation is confirmed against the actual roof configuration, usable dimensions and load capacity.
